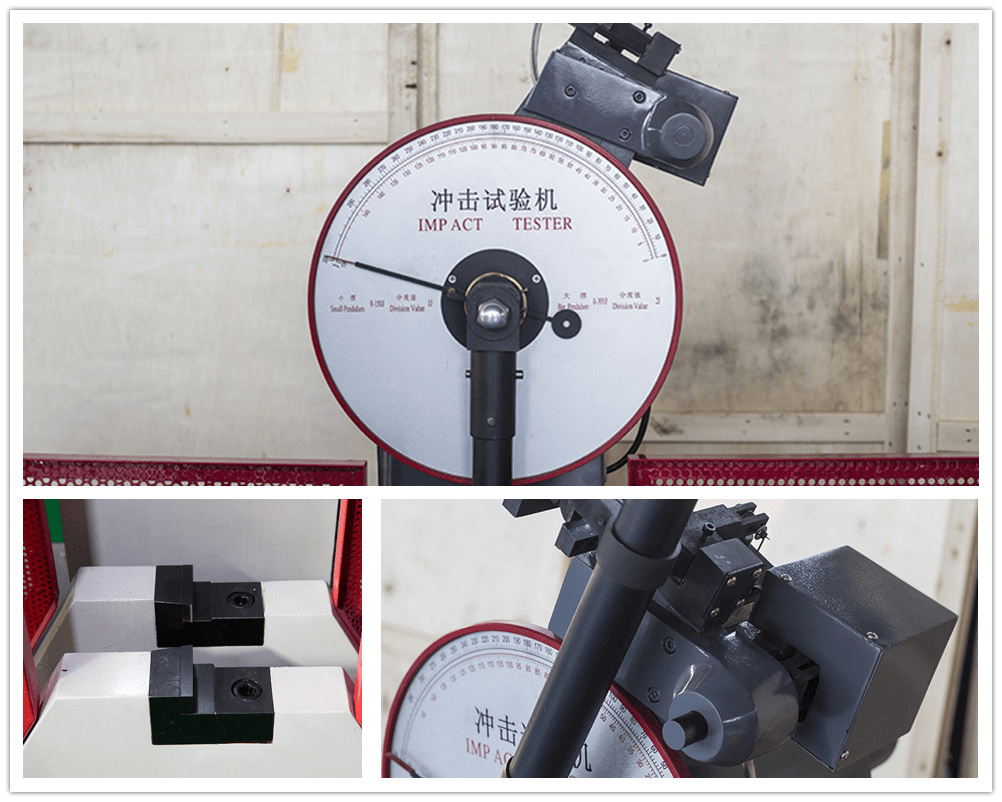

B type Pendulum Impact Testing Machine
JBW-300B/JBW-500B Microcomputer Controlled Metal Pendulum Impact Testing Machine
0102030405
1. Application Field
JBW-B Computer Control Semi-automatic Charpy Impact Testing Machine are mainly used to determine the anti-impact capability of metal materials under dynamic load.
Carry out the functions of zero clearing and automatic return, capturing the value of lost impact energy and pendulum cycle by means of setting up with computer program,and the results can be monitored, stored and printed out. Control box or computer program control is alternative operating method. JBW-B Computer Control Semi-automatic Charpy Impact Testing Machine are adopted by many institutes and high-tech enterprises.
Carry out the functions of zero clearing and automatic return, capturing the value of lost impact energy and pendulum cycle by means of setting up with computer program,and the results can be monitored, stored and printed out. Control box or computer program control is alternative operating method. JBW-B Computer Control Semi-automatic Charpy Impact Testing Machine are adopted by many institutes and high-tech enterprises.
2. Key Features
1.Can realize pendulum rising→impact→measurement→calculating→screen digital display→print
2.Safety pin guaranties the impact action, standard protection shell to avoid any accident.
3.Pendulum will automatically rising and ready for next impact action after specimen breakout.
4.With two pendulums (big and small), PC software to display the energy loss, impact tenacity, rising angle, test average value etc. test data and result, also the curve display available;
5.Single supporting column structure, Cantilever hanging pendulum way, U - shaped pendulum hammer.
Specification
| Model | JBW-300 | JBW-500 |
| Impact energy | 150J/300J | 250J/500J |
|
The distance between the
pendulum shaft and impact point |
750mm | 800mm |
| Impact speed | 5.2m/s | 5.24 m/s |
| Pre-rising angle of the pendulum | 150° | |
| Specimen bearer span | 40mm±1mm | |
| Round angle of bearing jaw | R1.0-1.5mm | |
| Round angle of impact blade | R2.0-2.5mm | |
| Thickness of impact blade | 16mm | |
| Power supply | 380V, 50Hz , 3 wire and 4phrases | |
| Dimensions (mm) | 2124x600x1340mm | 2300×600×1400mm |
| Net Weight (kg) | 450kg | 550kg |
Standard
ASTM E23, ISO148-2006 and GB/T3038-2002, GB/229-2007.
Supported Accessories
Tension jaws, Compression plate, 3-Points Bending Test Accessories, Hydraulic Pressure SensorControl Card, Extension meter. PC and Printer (Optional), Pipe, and install tools.
