Metallurgical Cutting Machine
SQ-60 Metallurgical Cutting Machine
0102030405
1. Application
Model SQ - 60 Metallographic specimen cutting machine can be used to cut various metal and non - metal materials so as to get specimen and observe the metallographic or lithofacies structure. It has cooling system so as to clear up the heat produced during cutting and avoid to burn the metallographic or lithofacies structure of specimen because of superheat. This machine features easy operation and reliable safety. It is the necessary specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
2. Key Features

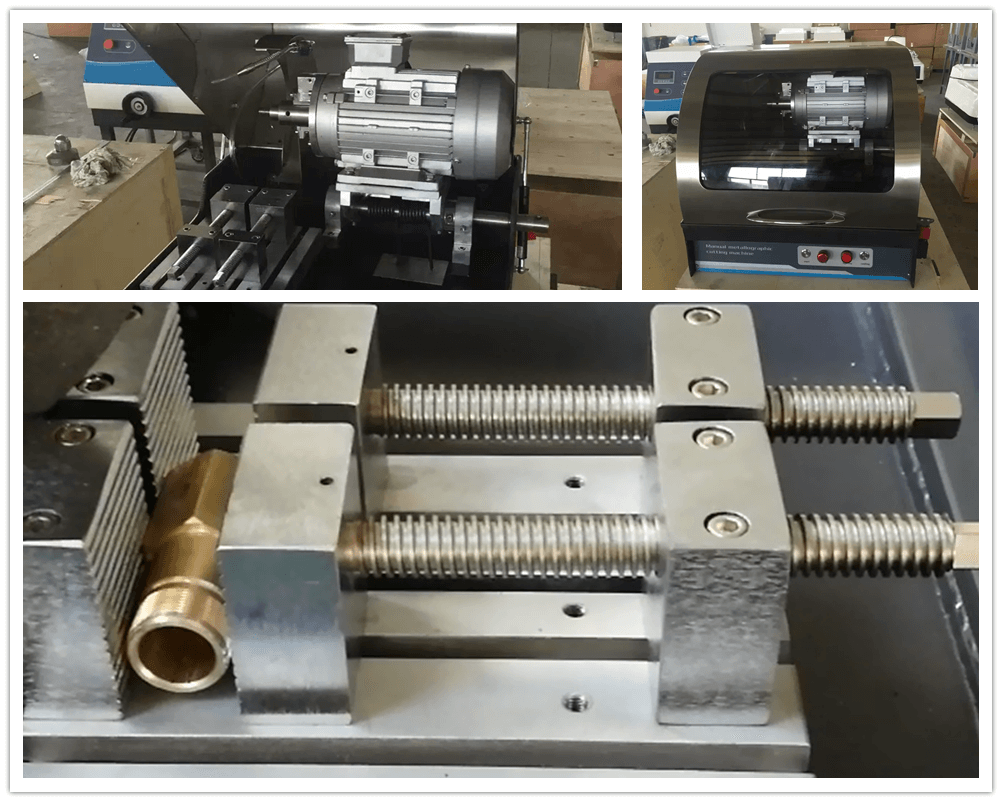

Quick clamping vice.
LED Lighting system
60L water cooling system
Fully enclosed stainless steel structure
4. Specification
4. Specification
|
Display Mode |
Full Computer Control and Display |
|
|
Model |
WAW-1000B |
WAW-1000D |
|
Structure |
2 Columns |
4 Columns |
|
2 Screws |
2 Screws |
|
|
Max.Load Force |
1000kn |
|
|
Test Range |
2%-100%FS |
|
|
Displacement Resolution(mm) |
0.01 |
|
|
Clamping Method |
Manual clamping or Hydraulic clamping |
|
|
Piston Stroke(Customizable)(mm) |
200 |
|
|
Tensile Space(mm) |
670 |
|
|
Compression Space(mm) |
600 |
|
|
Round Specimen Clamping Range(mm) |
Φ13-50 |
|
|
Flat Specimen Clamping Range(mm) |
0-50 |
|
|
Compression Plate(mm) |
Φ200 |
|
3. Standard
GB/T1.1—2000
GB/T1.2—2002
Supported Accessories
Tension jaws, Compression plate, 3-Points Bending Test Accessories, Hydraulic Pressure SensorControl Card, Extension meter. PC and Printer (Optional), Pipe, and install tools.
